Here is all you need to start building your pedalSHIELD:
- Guide How to build pedalSHIELD DUE in 5 Steps.
- How to Start Programming pedalSHIELD.
- pedalSHIELD DUE Schematic and Bill of Materials (see also below).
- pedalSHIELD DUE Forum.
- List of interesting Forum topics.
- pedalSHIELD DUE Flickr with hi-res images.
- Main Article.

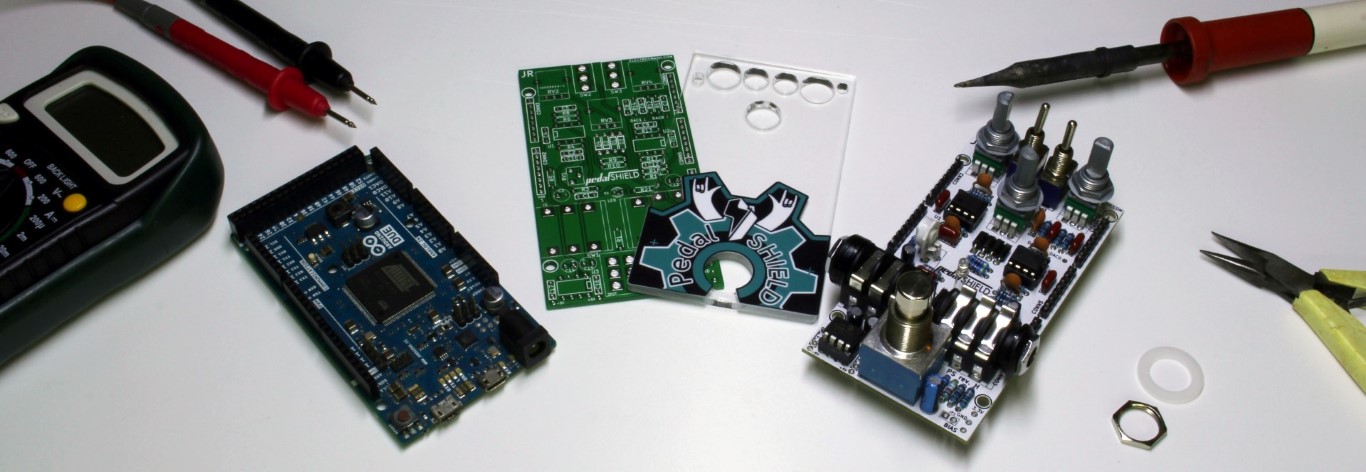

A very useful image:
pedalSHIELD DUE Bill of Materials.
The components were selected using easy-to-find through-hole parts and a minimum number of references. You can also download it in txt, pdf, excel or open office format.
| pedalSHIELD DUE Bill of Materials /Parts List | ||||
| Value | Qty | References | Description | Mouser Reference |
| Capacitors | ||||
| 270p | 5 | C2 C5 C8 C9 C12 | Ceramic Disc Capacitors | 140-50S5-271J-RC |
| 0.1u | 6 | C1 C4 C6 C7 C10 C11 | Film Capacitors. | ECQ-V1H104JL |
| 1u | 1 | C13 | Aluminium Electrolytic Capacitors | ECE-A1HKA010 |
| 4.7u | 1 | C3 | Aluminium Electrolytic Capacitors | ECE-A1EKA4R7 |
| 10u | 2 | C14 C15 | Aluminium Electrolytic Capacitors | ECE-A1HKA100B |
| 47uF | 1 | C18 | Aluminium Electrolytic Capacitors | REA470M1CBK-0511P |
| Resistors | ||||
| 1K | 2 | R3 R21 | Metal Film Resistors, 1% Tol. | MF1/4DC1001F |
| 4.7K | 3 | R5 R9 R10 | Metal Film Resistors, 1% Tol. | MF1/4DCT52R4701F |
| 50K | 1 | R7 | Metal Film Resistors, 1% Tol. | MF1/4DCT52R4992F |
| 100K | 12 | R4 R6 R8 R11 R12 R13 R14 R15 R16 R17 R19 R20 | Metal Film Resistors, 1% Tol. | MF1/4DCT52R1003F |
| 10M | 2 | R1 R2 | Metal Film Resistors, 1% Tol. | RK1/4DC1005F |
| 500K | 1 | RV1 | Trimmer Res. -9mm Single Turn | 3319W-3-504 |
| 10K | 3 | RV2 RV3 RV4 | Alpha Potentiometers Flat 20mm | RK09L114001T |
| Plastic Knobs | 3 | RV2, RV3, RV4 | Plastic Knob +crew, Shaft:6.35mm | 450-2023-GRX |
| Others | ||||
| 1N5817 | 4 | D1 D2 D3 D4 | Schottky Diodes Vr/20V Io/1A | 1N5817 |
| LED | 1 | D5 | Through hole, blue led. | C4SMG-BJS-CQ0T0451 |
| SWITCH_3PDT | 1 | SW1 | 3PDT True Bypass Footswitch | 107-SF17020F-32-21RL |
| SWITCH_INV | 2 | SW2 SW3 | Toggle Switch SPDT | |
| Connectors | ||||
| CONN_8pins | 5 | CONN2 CONN3 CONN4 CONN5 CONN6 | ||
| JACKS | 2 | JI, J2 | Neutrix 1/4 stereo Chrome Conn. | NMJ6HCD2 |
| IC's | ||||
| TL072 | 2 | U1 U2 | Operational amplifier. | TL072IPE4 |
| TC1044 | 1 | U3 | Voltage switching regulator. | TC1044SCPA |
| 8PIN SOCKETS | 3 | U1, U2, U3 | 8pin DIP plastic socket. | 1-390261-2 |
| Mechanic | ||||
| pedalSHIELD PCB | 1 | Dual Layer 2x4” PCB soldermask. | ||
| Plastic Protector | 1 | 3D printed plastic cover protector. | ||
And remember that you can always contact us.
